Are you looking for the perfect reference sphere for your fields of application? Do you lose track of the variety of reference sphere types? Benefit from the following overview to find quickly the reference sphere that is perfectly suited for your demands. The overview covers the spheres provided by Laserscanning Europe GmbH.
You find further product information in Laserscanning Europe’s online shop. If you have any questions, please don't hesitate to contact us (phone: +49 (0) 391 62 69 960, e-mail: info@laserscanning-europe.com).
| Basic | Flexi | UltraX | Traveler | XXL | Prism Sphere (Ø 145mm) | Prism Sphere (Ø 100mm) | |
|---|---|---|---|---|---|---|---|
| Ø 145mm | x | ||||||
| Ø 145mm*1 | x | x | x | x | x | ||
| Ø 200mm | x | ||||||
Magnet base*2 | x | x | x | x | x | x | |
| Usage for permanent marking*3 | x | x | x | x | x | x | x |
| Registration via mini prism*4 | x | x | x | x | x | mini prism integrated | mini prism integrated |
| Fitting for optional adapters*5 | x | x | x | x | x | ||

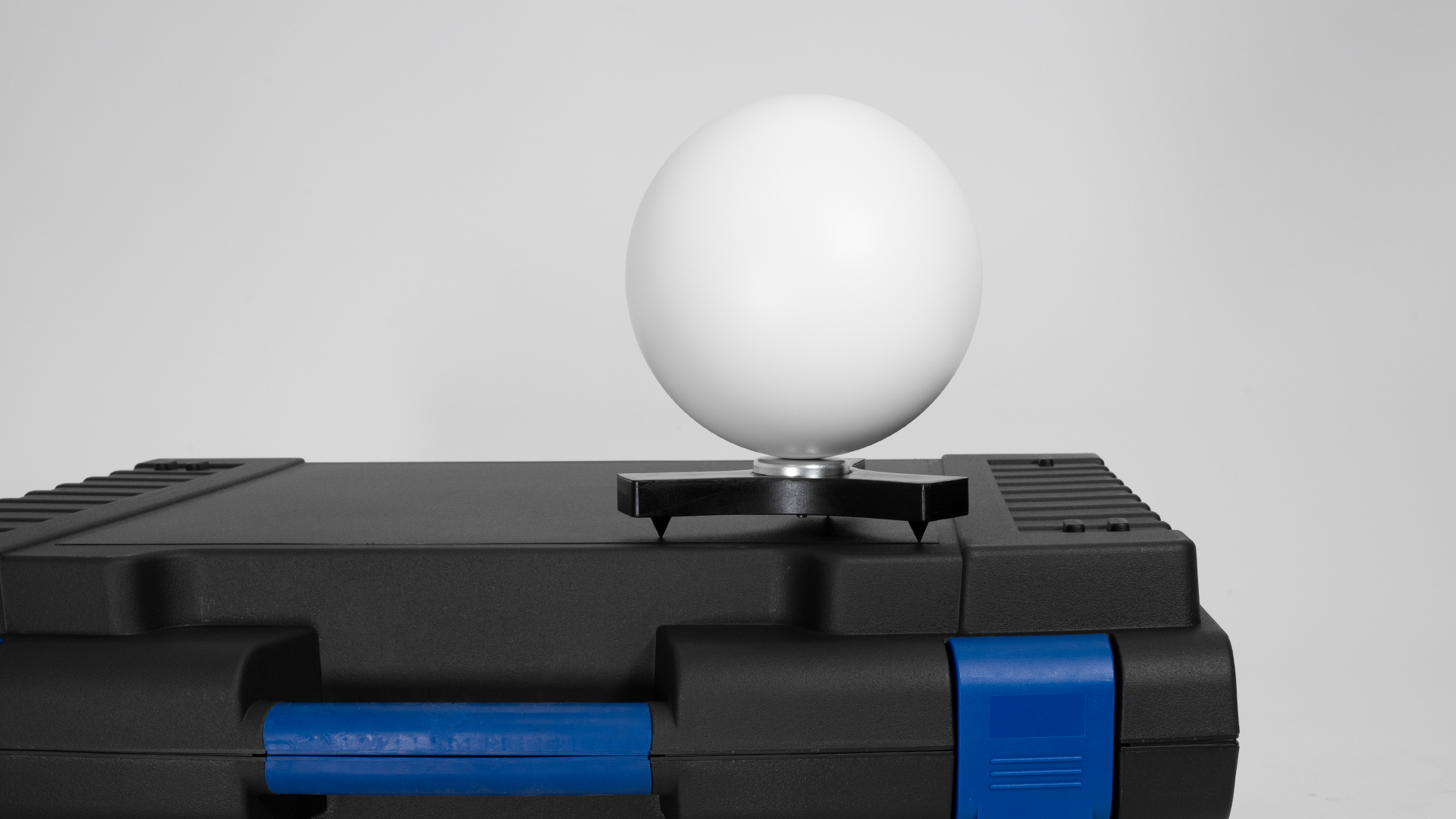

| Set optional with reference sphere pedestals | x | x | x | x | sphere pedestals separately available | sphere pedestal separately available | |
| Usage and storage recommended at following temperature range*6 | 0° to +50°*7 | -20° to +50°*7 | -50° to +70° | -20° to +50°*7 | 0° to 50°*7 | -50° to +70° | |

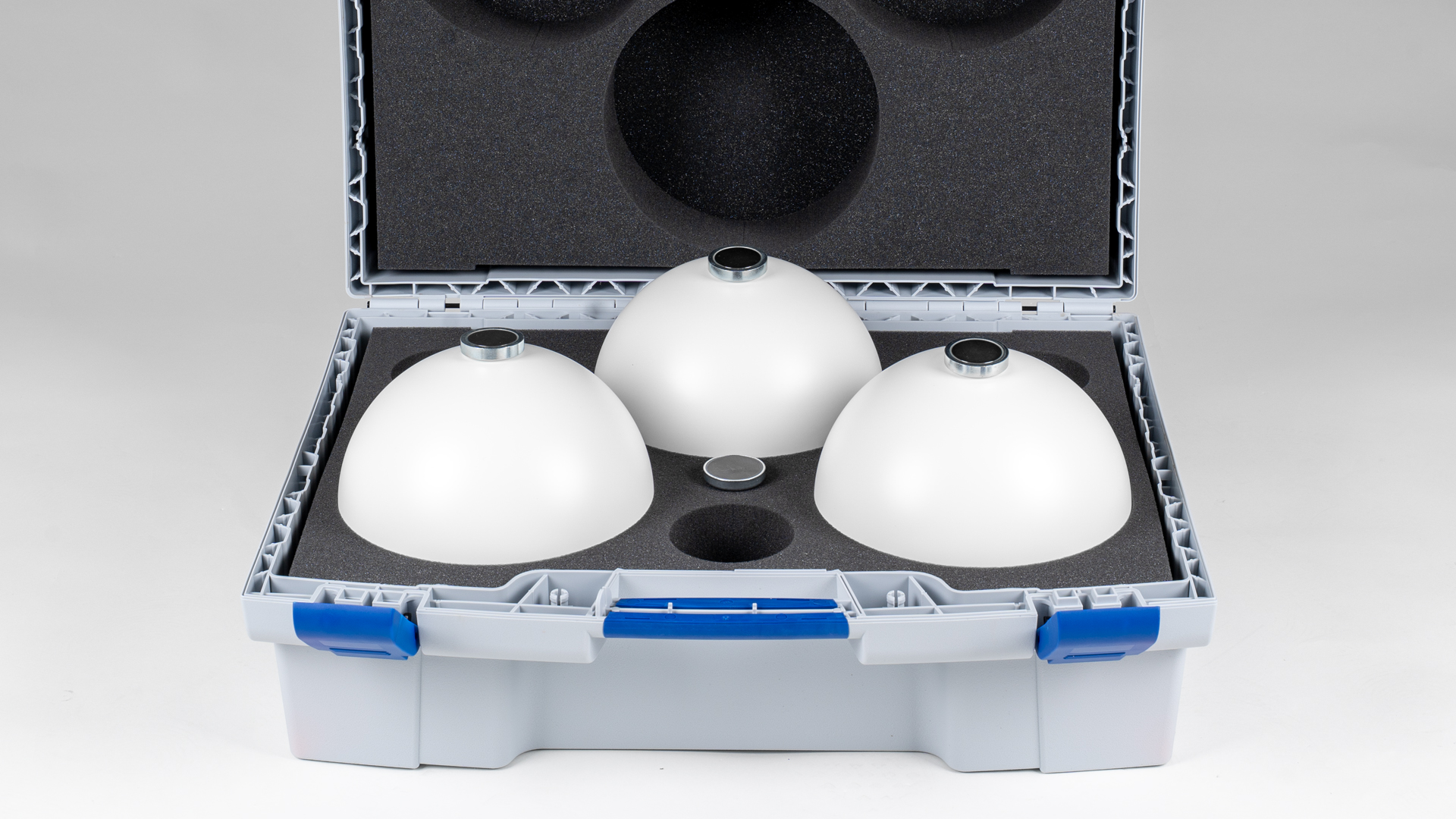

| Number of spheres in a set | 6 | 6 | 6 | 6 | 2 | 1 | 1 |
| Recommended usage | suited for tacheometric determination of reference points | suited for daily use | for highly accurate measurements (industrial applications, quality assurance) | suited for daily use and especially for traveling | for scanning objects with large size | suited for connecting laser scan data and tacheometric measurements | suited for connecting laser scan data and tacheometric measurements |
Further characteristics | sphere resists normal stresses M8 female thread | sphere is very robust and long-lasting integrated shock absorber scratch-proof surface due to special coating M8 female thread | up to 20 times more precise than standard 3D laser scanners M8 female thread | M8 female thread sphere with the smallest pack size (The sphere can be taken to pieces.) delivery contents include a bag in addition to a bag | sphere resists normal stresses with further accessories (tripod adapter, prism pole adapter) available as a set M8 female thread | M8 female thread with a magnet screwed-in sphere with integrated prism mirror prism constant: -34.4mm / Leica: 0mm | 5/8" male thread or 5/8" female thread sphere with integrated prism mirror prism constant: -34.4mm / Leica: 0mm |
| Price*8 | 599.00 € | 749.00 € | 960.00 € | 1,299.00 € | 395.00 € | 399.00 € | 379.00 € |
*1 145mm is a standard diameter that is supported by all customary laser scanners (e g. FARO Focus3D).

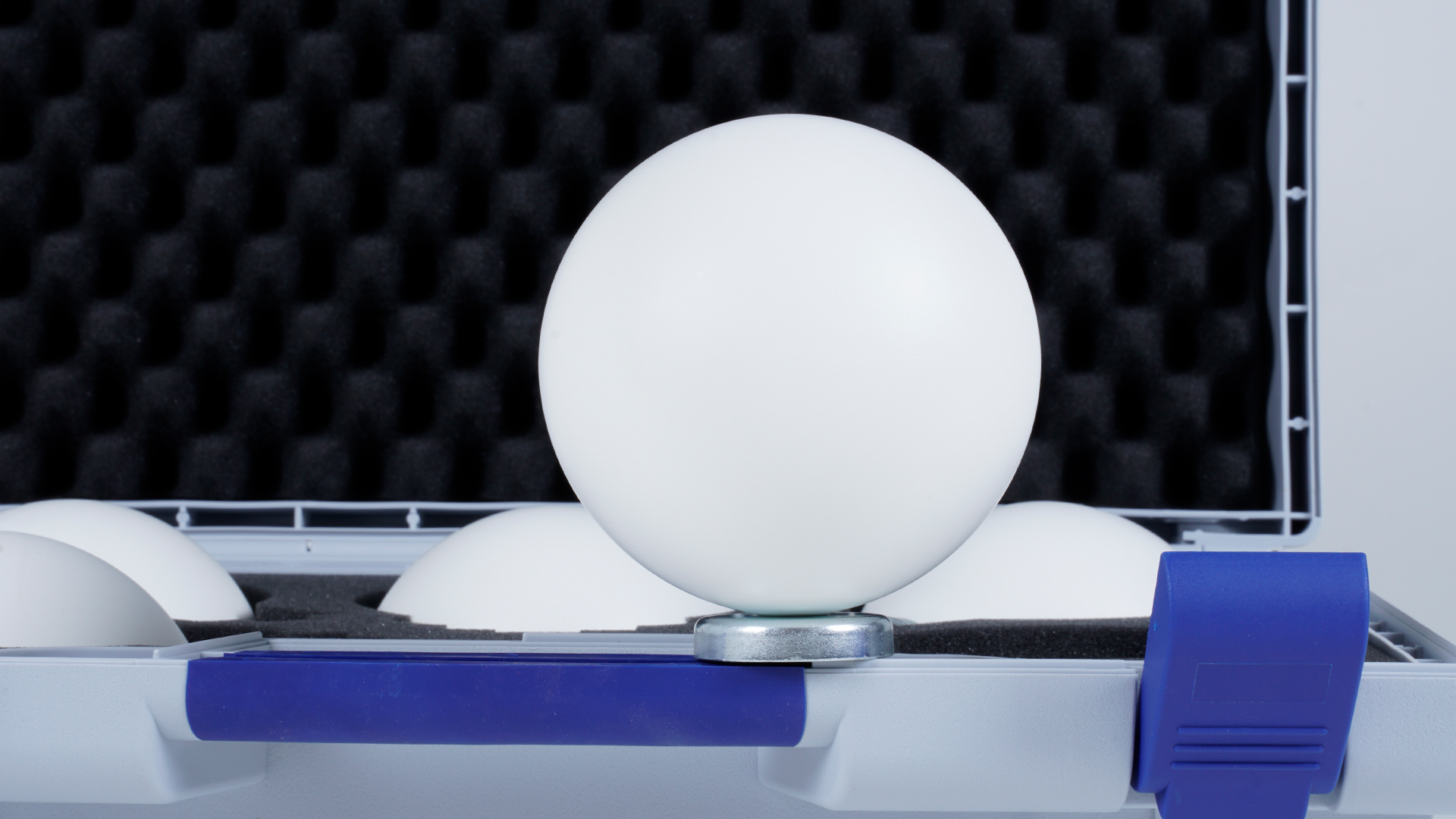

*2 The magnet base allows easy attachment of the sphere to magnetic surfaces. For permanent marking of the sphere’s positions, measurement point stickers, measuring point disks and precision measuring point disks are a great solution. Marking the positions is especially advantageous for scanning at a subsequent date and for repeated measurements.
*3 Laser scanner reference points can be marked out permanently, for instance on fixed M8 thread rods/bolts. Reference spheres with such a characteristic have a female thread and, thus, can be screwed onto the reference points.
*4 The integrated ball screw as well as the precise fabrication allow the detection of the reference sphere by use of our mini prism.
*5 By means of special adapters, you can attach the spheres to your standard accessories (e. g. surveying tripods, tachymeter rods etc.) or to unusual surfaces (e. g. window panes).
*6 All reference spheres are approved for the working area (ambient temperature) of scanners. This temperature usually amounts to 0 to 50 degrees.
*7 When the sphere is used at very cold ambient temperatures (< -5 degrees), the painted surface might be damaged.
*8 As of September 2017. We reserve the right to modify our prices at any time.
