Shining3D FreeScan Combo
TitleDiscover the FreeScan Combo
The FreeScan Combo is an upgrade to the renowned FreeScan series from Shining3D. As the newest member, the FreeScan Combo is the compact partner of the FreeScan UE Pro handheld scanner. Despite its small dimensions and light weight, this 3D metrology scanner impresses with its impressive precision and attention to detail.
Its wide range of applications makes it the ultimate all-rounder in the field of hand-held scanners. Find out more about the performance of the FreeScan Combo from Shining3D and its capabilities.
TitleReliable combination of blue laser and infrared VCSEL

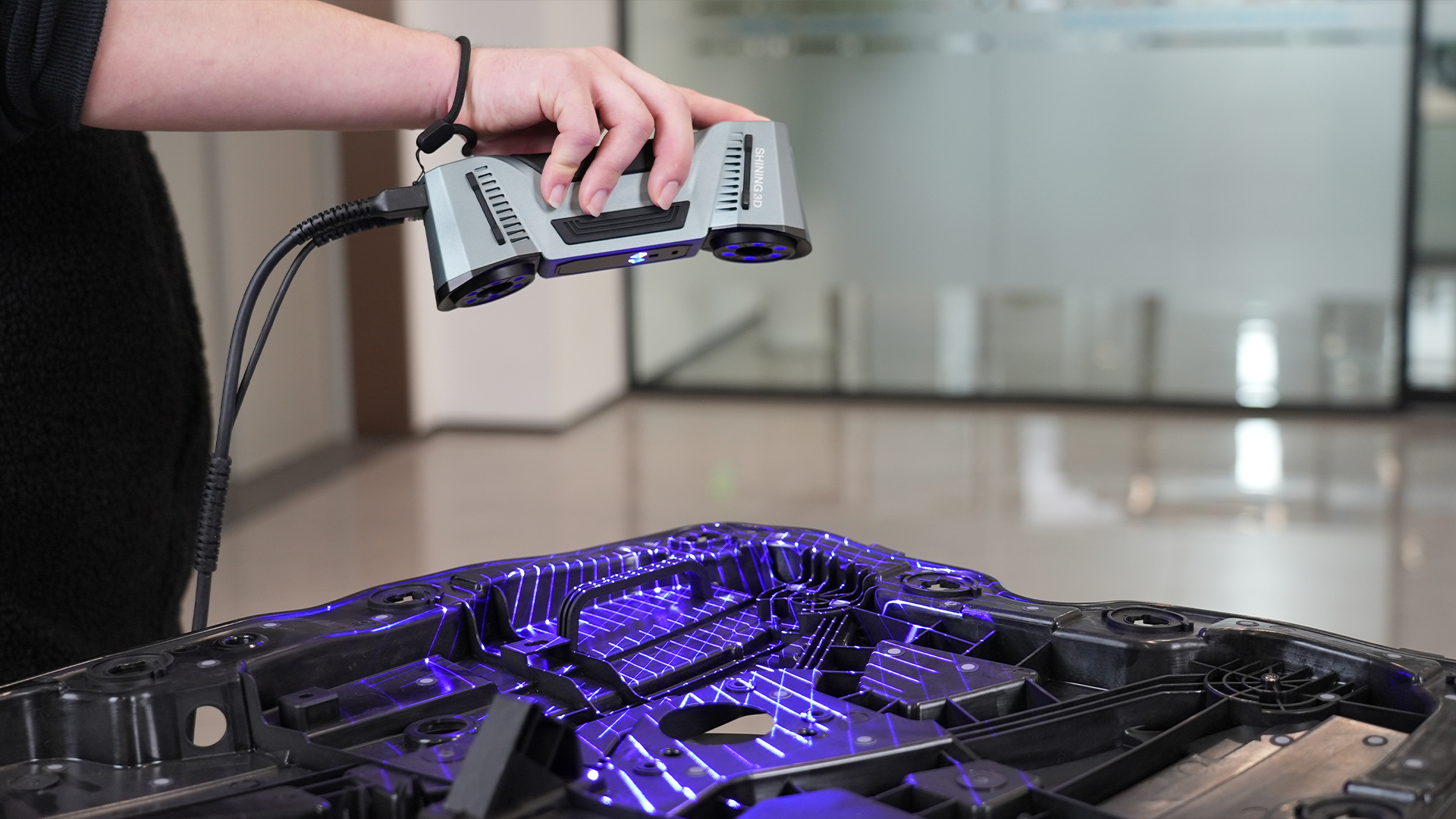

The metrology scanner is equipped with two light sources that ensure broad coverage of requirements in various industrial scanning scenarios. The blue laser can be used to precisely capture the finest details and hard-to-reach areas, enabling comprehensive data capture. By using the infrared light source, it is possible to scan objects quickly and without the need for reference points.
This wide range of light source options enables flexible adaptation to the specific requirements of your 3D metrology applications. Rely on the metrology scanner to implement precise and efficient scanning solutions for a wide range of applications.
Title4 different scan modes
- 26 blue laser lines for global and homogeneous detection of objects
- 7 parallel laser lines for fine, detailed scanning
- 1 laser line for hard-to-reach areas such as objects with holes
- Infrared light mode for a large field of view and scanning without reference points
TitleFast scans with high accuracy
The FreeScan Combo not only impresses with its compact design, but also delivers top performance when capturing data. With an impressive scanning speed of 1,860,000 points per second, it even puts the FreeScan UE Pro scanner in the shade. The handheld scanner effortlessly deals with even challenging surfaces such as black or reflective materials and always delivers precise results.
But it's not just the speed that impresses – the remarkable accuracy of up to 0.02mm also enables the scanner to capture even the tiniest details without difficulty. This precision can prove extremely important in subsequent processing, making the FreeScan Combo an indispensable scanner.
TitleA 3D scanner for different requirements
The FreeScan Combo from Shining3D can be used universally in its applications thanks to its hybrid technology.
In many areas, the size and type of object to be scanned often varies, meaning that different measuring devices are required for the different objects to be measured. With the FreeScan Combo, however, you can master different applications with just one measuring device.
TitleAreas of application at a glance

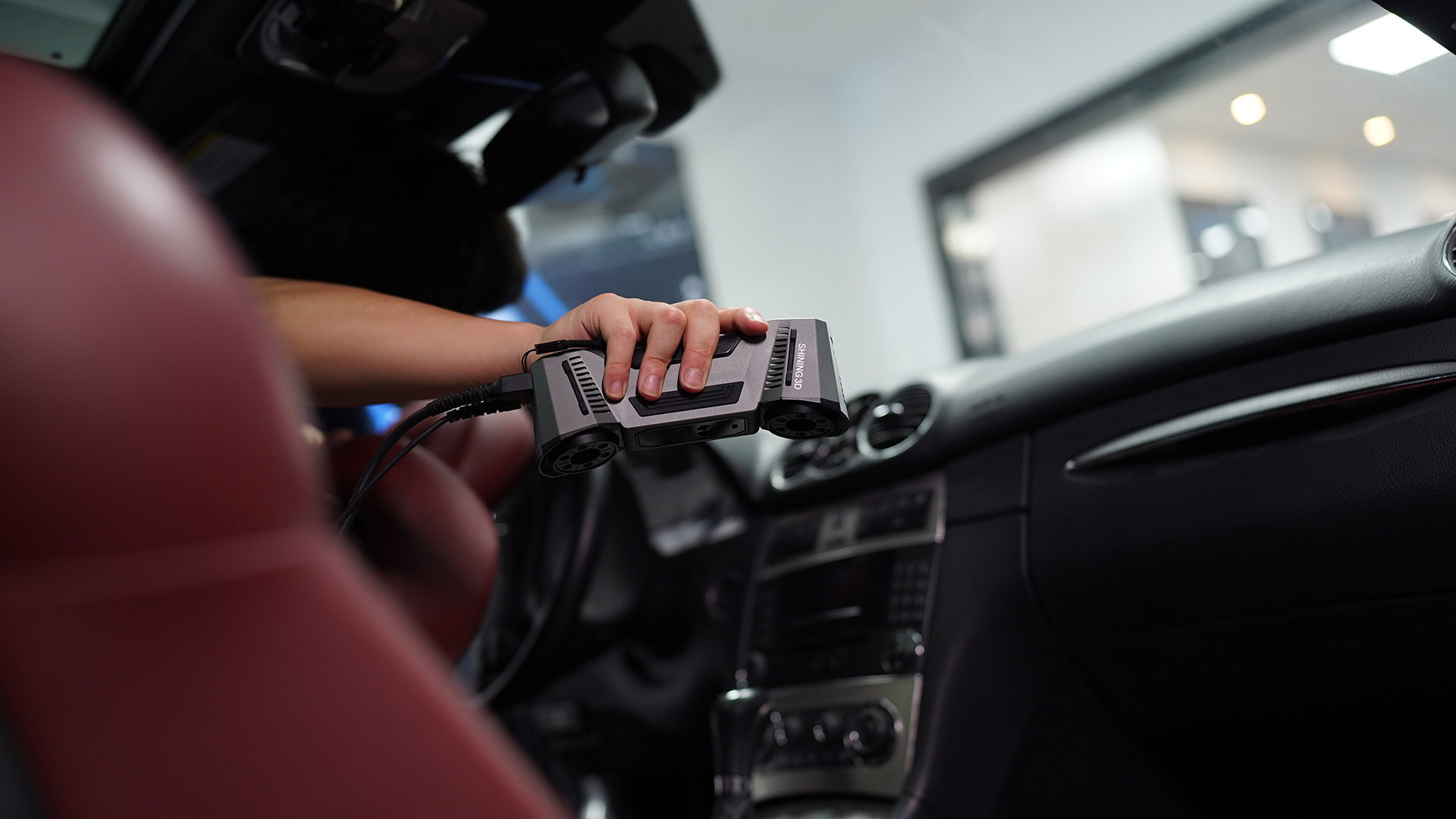

- Automotive industry: body designs, quality management, quality control, vehicle personalization
- Rail transportation: model designs, assembly and troubleshooting on the production line, overall size control, part repair and maintenance
- Aerospace: aircraft structure inspection, interior design, engine inspection, maintenance and operation

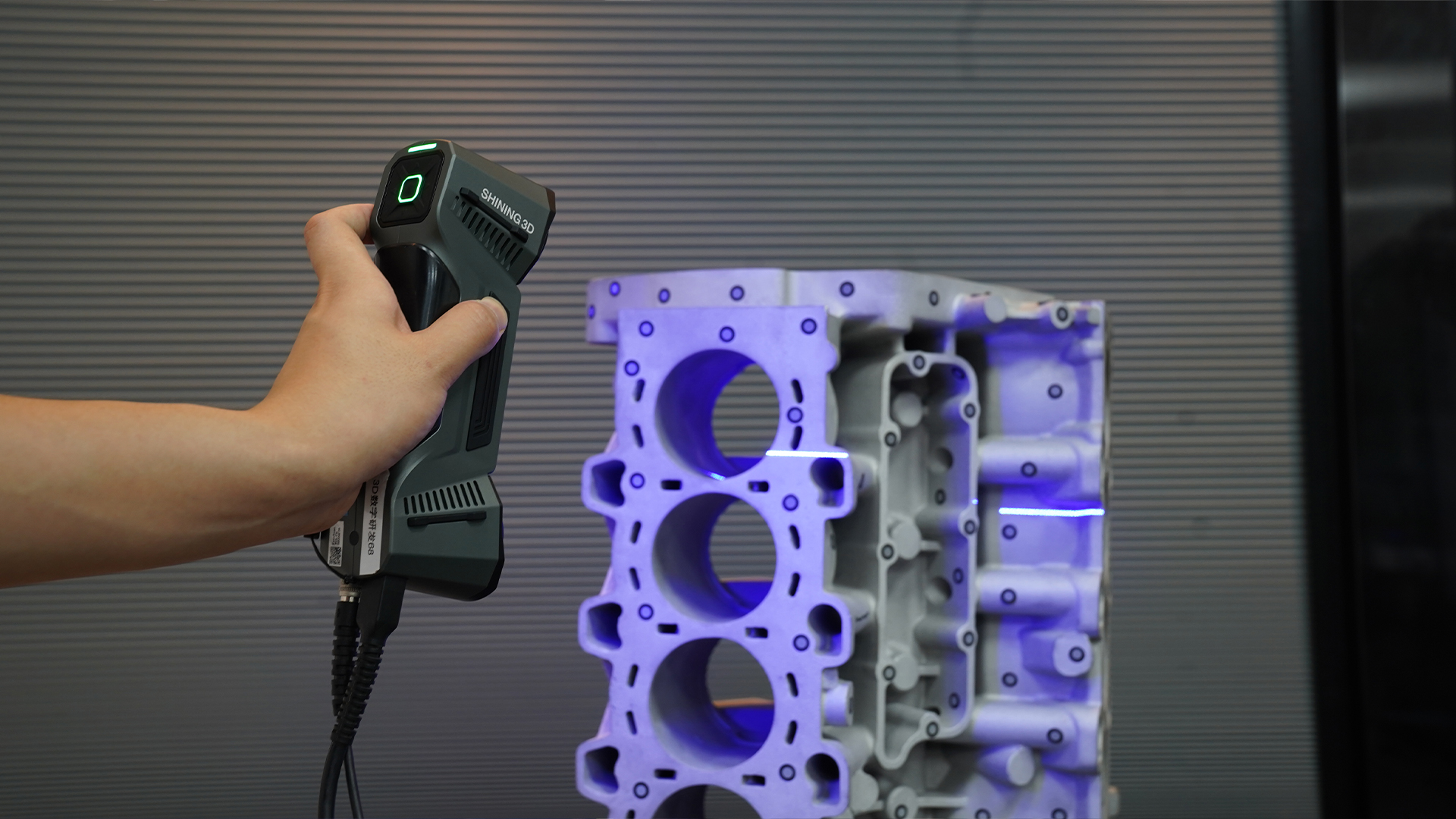

- Power generation: Reverse engineering, fluid dynamic analysis, deformation analysis, impeller blade inspection
- Mold making: virtual assembly, wear analysis and maintenance, quality control, fixture design
- Manufacturing: quality inspection and control, tool and mold setting, rapid prototype testing, OEM and remanufacturing of old parts
TitleTechnical specifications
| Model | FreeScan Combo | |||
|---|---|---|---|---|
| Scan modes | Multi lines scan | Single lines scan | Fine scan | Infrared scan |
| Light source | 26 laser lines | 1 laser lines | 7 parallel laser lines | VCEL light source |
| Operating distance | 300mm | 300mm | 200mm | 300mm |
| Accuracy | Up to 0.02mm | - | ||
| Volumetric accuracy | 0.02 + 0.033mm/m | 0.05 + 0.1mm/m | ||
| Scan speed | 1,860,000 points/s | 2,250,000 points/s | ||
| Scan depth | 360mm | 1240mm | ||
| Max. FOV | 520mm x 510mm | 600mm x 600mm | ||
| Point distance | 0.05mm - 3mm | 0.2mm - 3mm | ||
| Laser class | Class 2 (safe for the eyes) | |||
| Standard connection | USB 3.0 | |||
| Dimensions | 193mm x 63mm x 53mm | |||
| Weight | 620g | |||
| Power supply | 12V, 5.0A | |||
| Operating temperature | -20 ~ 40°C | |||
| Operating humidity | 10 ~ 90% | |||
| Certification | CE, FCC, ROHS, WEEE, KC, FDA, UKCA, IP50 | |||
| Recommended computer configuration | OS: Win10/11, 64bit; | |||
